R1-1
STOP
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
R1-1

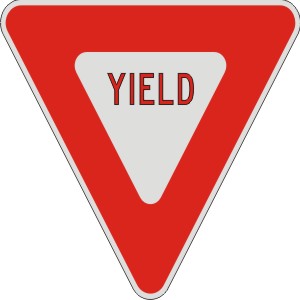

Yield
30, 36, 48, 60
New 2009 MUTCD
Standard Sizes
|
|
|
|
R1-2a

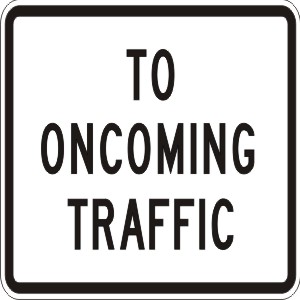

To Oncoming Traffic
24X18, 36X30, 48x36
|
|
|
R1-2aP
To On Coming Traffic
24X18, 36X30, 48X36
New 2009 MUTCD
Standard Sizes
|
|

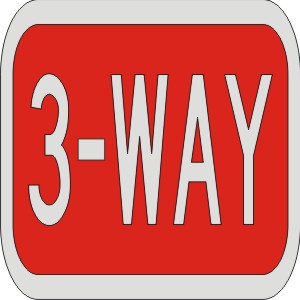

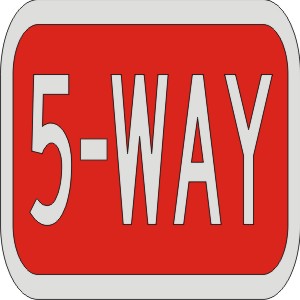

R1-3P
ALL WAY
18X6
|

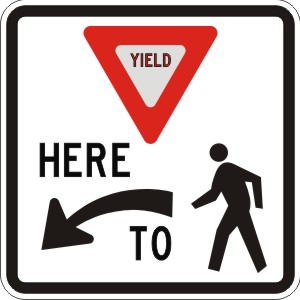

R1-5L
Yield Here To Peds
36X36
New 2009 MUTCD
Standard Size
|

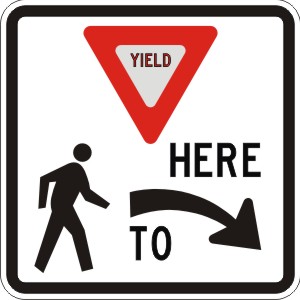

R1-5R
Yield Here To Peds
36X36
New 2009 MUTCD
Standard Size
|
|
|
|
|
|
|
|

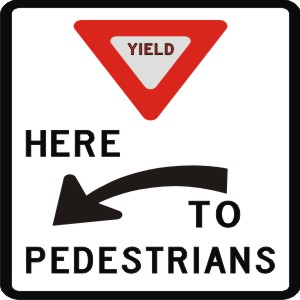

R1-5aL
Yield Here To Peds
36X48
New 2009 MUTCD
Standard Sizes
|

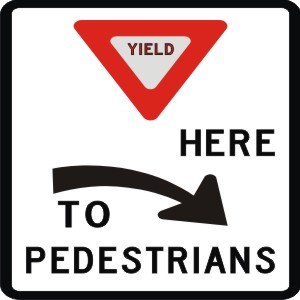

R1-5aR
Yield Here To Peds
36X48
New 2009 MUTCD
Standard Sizes
|
R1-5bL
Stop Here for Peds
36X36
New 2009 MUTCD
Standard Sizes
|
R1-5bR
Stop Here for Peds
36X36
New 2009 MUTCD
Standard Sizes
|
R1-5CL
Stop Here to Peds
36X48
New 2009 MUTCD
Standard Sizes
|
R1-5CR
Stop Here to Peds
36X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|

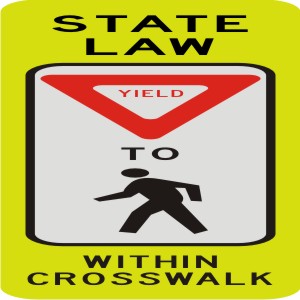

R1-6
In-Street Yield To
Pedestrians Crossing
12X36
|

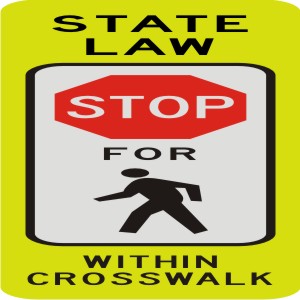

R1-6a
In-Street Stop For
Pedestrians Crossing
12X36
|

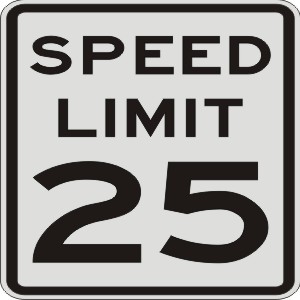

R2-1
Speed Limit
18X24, 24X30, 30X36
36X48, 48X60
|

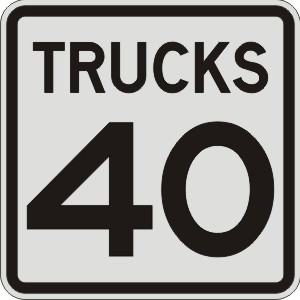

R2-2P
Truck Speed Limit
24X24, 36X36
48X48
|

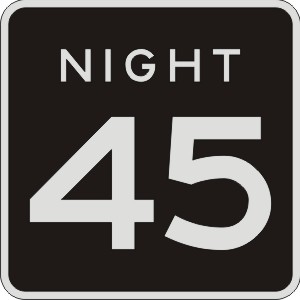

R2-3P
Night Speed Limit
24X24, 36X36
48X48
|

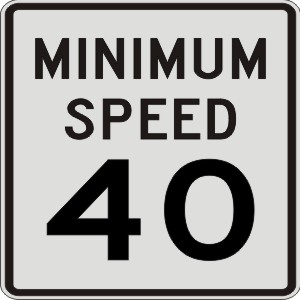

R2-4P
Minimum Speed
24X30, 36X48, 48X60
|
|
|
|
|
|
|
|
R2-4a

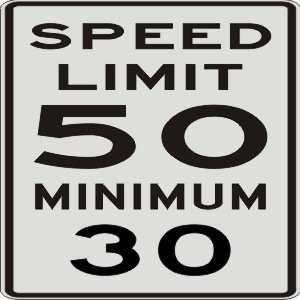

Combined Speed Limit
24X48, 36X72, 48X96
|
R2-5a
REDUCED SPEED
AHEAD
18X24, 24X30
36X48, 48X60
|
R2-5b
REDUCED SPEED 10
24X30, 36X48
48X60
|
R2-5c
SPEED ZONE AHEAD
18X24, 36X48
48X60
|
R2-6P
Fines Higher
24X18, 36X24, 48X36
New 2009 MUTCD
Standard Sizes
|
R2-6aP
Fines Double
24X18, 36X24, 48X36
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R2-6
Fines Triple
24X24, 36X36
48X48
|
R2-6bP
$150 Fine
24X18, 36X24, 48X36
New 2009 MUTCD
Standard Sizes
|
R2-I100
TRUCKS OVER
4 TONS, 55
30X30
|
R2-I101
35 M.P.H.
18X18
|
R2-I102
MINIMUM 55
36X30
|
R3-1
NO RIGHT TURN SYM
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R3-1P
NO RIGHT TURN
24X18
|
R3-2
NO LEFT TURN
SYMBOL
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
R3-2P
NO LEFT TURN
24X18
|
R3-3
NO TURNS
24X24, 36X36
48X48
|
R3-4
NO U-TURN SYMBOL
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
R3-4P
NO U-TURN
24X18
|
|
|
|
|
|
|
|
R3-5L
Left Turn Symbol
ONLY
30X36
|
R3-5R
Right Turn Symbol ONLY
30X36
|
R3-5a
Mandatory Movement
Lane Control
30X36
|
R3-6L
Optional Movement,
Straight & Left
30X36
|
R3-6R
Optional Movement,
Straight & Right
30X36
|
R3-7L
Mandatory Turn Left
30X30, 36X36
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R3-7R
Mandatory Turn Right
30X30, 36X36
New 2009 MUTCD
Standard Sizes
|
R3-8L
Double Turn (arrows)
30X30
|
R3-8L Modified
Double Turn (arrows)
30X30
|
R3-8R Modified
Double Turn (arrows)
30X30
|
R3-8R
Double Turn (arrows)
30X30
|
R3-8a
Advanced Intersection
48X30
|
|
|
|
|
|
|
|
R3-8b
Advanced Intersection
48X30
|
R3-9a
Two-Way Left Turn Only
(Overhead)
30X36
|
R3-9b
Two-Way Left Turn Only
(Post Mount)
24X36, 36X48
|
R3-16
Bicycle (Symbol) Lane
Ahead
24X30
|
R3-17
Right Lane Bicycle
(Symbol) ONLY
24X18
New 2009 MUTCD
Standard Sizes
|
R3-17aP
BIKE LANE
18X24
|
|
|
|
|
|
|
|
R3-17bP
BIKE LANE AHEAD
18X24
|
R3-18
Combo U-Turn & Left
Turn Prohibited
24X24
36X36, 48X48
|
R3-I100
LEFT TURN LANE
24X24
|
R4-1
DO NOT PASS
18X24, 24X30
36X48, 48X60
|
R4-2
PASS WITH CARE
18X24, 24X30
36X48 48X60
|

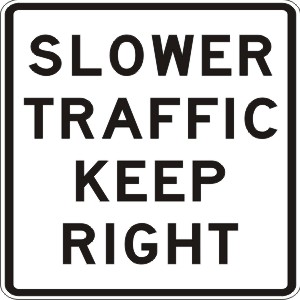

R4-3
Slower Traffic Keep
Right
18X24, 24X30
36X48, 48X60
|
|
|
|
|
|
|
|
R4-4
Begin Right Lane Turn-
Yeild To Bikes
36X30
|
R4-6
Truck lane 500 Ft
24X30, 36X48
48X60
|
R4-7
Keep Right (Symbol)
18X24, 24X30
36X48, 48X60
|
R4-7a
Keep Right
18X24, 24X30
36X48, 48X60
|
R4-7b
Keep Right
18X24, 24X30
36X48, 48X60
|
R4-7P
KEEP RIGHT Plaque
24X18
|
|
|
|
|
|
|
|
R4-8
Keep Left (Symbol)
18X24, 24X30
36X48, 48X60
|
R4-8P
KEEP LEFT Plaque
24X18
|
R4-9
Stay In Lane
18X24, 24X30
36X48, 48X60
|
R5-1
DO NOT ENTER
30X30, 36X36
48X48
|
R5-1a
WRONG WAY
30X18, 36X24, 42X30
|
R5-1b
Wrong Way With
Bicycle Symbol
12x18
|
|
|
|
|
|
|
|
R5-2
No Trucks Symbol
24X24, 30X30, 36X36
|
R5-2a
No Trucks
24X24, 30X30, 36X36
|
R5-3
NO MOTOR VEHICLES
24X24
|
R5-4
Commercial Vehicles
Excluded
24X30, 36X48
New 2009 MUTCD
Standard Sizes
|
R5-6
No Bicycle Symbol
24X24, 30X30
36X36, 48X48
|
R5-7
Non-Motorized Traffic
Prohibited
30X24, 42x24
48X30
|
|
|
|
|
|
|
|
R6-1L
ONE WAY
(in Left Arrow)
36X12, 54X18
|
R6-1R
ONE WAY
(in Right Arrow)
36X12, 54X18
|
R6-2L
ONE WAY with
Left Arrow
18X24, 24X30
30X36, 36X48
New 2009 MUTCD
Standard Sizes
|
R6-2R
ONE WAY with
Right Arrow
18X24, 24X30
30X36, 36X48
New 2009 MUTCD
Standard Sizes
|
R6-3
DIVIDED HIGHWAY
(Four-Legged
Intersection)
30X24, 36x30
New 2009 MUTCD
Standard Sizes
|
R6-3a
DIVIDED HIGHWAY
(T-Intersection)
30X24, 36x30
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R8-8
Do Not stop On Tracks
24X30, 36X48
New 2009 MUTCD
Standard Sizes
|
R8-9
Tracks Out Of Service
24X24, 36X36
New 2009 MUTCD
Standard Sizes
|
R8-10
Stop Here When
Flashing
24X36
|
R9-1
Walk On Left Facing
TRaffic
18X24
|

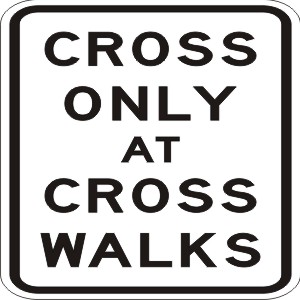

R9-2
Cross Only At
Crosswalks
12X18
|
R9-3a
No Pedestrian Crossing
12X18
|
|
|
|
|
|
|
|
R9-3
No Pedestrian
Crossing (Symbol)
18X18, 24X24
30X30
|

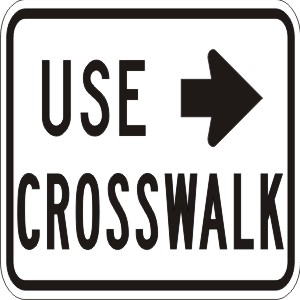

R9-3bP
Use Crosswalk With
Arrow
18X12
|
R9-3cP
Ride With Traffic
12X12
|
R9-4a
NO HITCH HIKING
18X24
|
R9-4
No Hitch Hiking Symbol
18X18
|
R9-5
Bike Sym.
USE PED SIGNAL
12X18
|
|
|
|
|
|
|
|
R9-6
Bike Sym.
YIELD TO PEDS
12X18
|
R9-7
KEEP LEFT Ped Sym &
RIGHT Bike Sym
12X18
|
R9-8
Pedestrian Crosswalk
36X18
|
R9-9
Sidewalk Closed
24x12, 30X18
|
R9-10
Sidewalk Closed
Use Other Side
With Double Arrow
24X12, 48X24
|
R9-11
Sidewalk Closed
Ahead Cross Here
With Arrow
24X12, 48X36
|
|
|
|
|
|
|
|
R9-11a
Sidewalk Closed Cross
Here with Arrow
24X12, 48X24
|
R10-1
CROSS ON GREEN
LIGHT ONLY
12X18
|
R10-2
CROSS ON WALK
SIGNAL ONLY
12X18
|

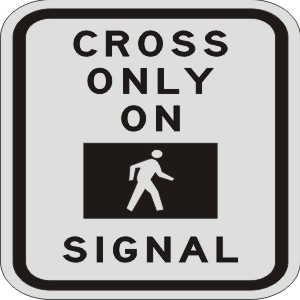

R10-2a
CROSS ONLY ON
Symbol SIGNAL
9X12
|
R10-3
PUSH BUTTON FOR
GREEN LIGHT
9X12
|
R10-3a
TO CROSS STREET
with Arrow PUSH
BUTTON
9X15
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R10-3b
Crossing Instructions
with Flashing Hand
9X12
|
R10-3c
Crossing Instructions
with Flashing
DON'T WALK
9X12
|
R10-4
PUSH BUTTON FOR
WALK SIGNAL
9X12
|
R10-4a
TO CROSS STREET
with Arrow PUSH
BUTTON WAIT
9X15
New 2009 MUTCD
Standard Sizes
|
R10-4b
PUSH BUTTON FOR
Walk Symbol
9X12
|
R10-5
LEFT ON
ARROW ONLY
24X30, 30X36, 48X60
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R10-6
STOP HERE ON RED
24X36
|
R10-6a
STOP HERE ON RED
with Arrow
24X30
|
R10-7
DO NOT BLOCK
INTERSECTION
24X30
|
R10-8
USE LANE WITH
GREEN ARROW
36X42
New 2009 MUTCD
Standard Sizes
|
R10-10L
LEFT TURN SIGNAL
30X36
New 2009 MUTCD
Standard Sizes
|
R10-10R
LEFT TURN SIGNAL
30X36
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R10-11
No Turn On Red
with Red Ball
24X30, 36X48
New 2009 MUTCD
Standard Sizes
|
R10-11a
NO TURN ON RED
30X36, 36X48
New 2009 MUTCD
Standard Sizes
|
R10-11b
NO TURN ON RED
36X36
New 2009 MUTCD
Standard Sizes
|
R10-12
LEFT TURN YIELD ON
GREEN BALL
30X36
New 2009 MUTCD
Standard Sizes
|
R10-13
Emergency Signal
42X30
New 2009 MUTCD
Standard Sizes
|
R10-15
Turning Traffic Must
Yield To Pedestrians
30X30
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
R10-16
U-Turn Yield To Right
Turn
30X36
|
R10-17a
Right On Red Arrow
After Stop
36X48
New 2009 MUTCD
Standard Sizes
|
R10-18
Traffic Laws Photo
Enforced
36X24, 48X30, 54X36
New 2009 MUTCD
Standard Sizes
|
R10-19aP
Photo Enforced
24X18, 36X30
48X36
|
R10-21
Left Turn Signal Yeild
On Green with Green
Ball
30X36
|
R10-22
Bike Actuation
12X18
|
|
|
|
|
|
|
|
R11-1
KEEP OFF MEDIAN
24X30
|
R11-2
ROAD CLOSED
48X30
|
R11-2b
BRIDGE CLOSED
48X30
|
R11-3a
ROAD CLOSED 10
MILES AHEAD LOCAL
TRAFFIC ONLY
60X30
|
R11-3b
BRIDGE OUT 10 MILES
AHEAD LOCAL
TRAFFIC ONLY
60X30
|
R11-4
ROAD CLOSED TO
THRU TRAFFIC
60X30
|
|
|
|
|
|
|
|
R12-1
WEIGHT LIMIT 10
TONS
24X30, 36X48
|
R12-2
AXLE WEIGHT LIMIT
5 TONS
24X30, 36X48
|
R12-2
AXLE WEIGHT LIMIT
5 TONS Alt
24X30, 36X48
|
R12-3
NO TRUCKS OVER
7000 LBS EMPTY WT
24X36
|
R12-4
WEIGHT LIMIT 2 TONS
PER AXLE 10 TONS
GROSS
36X24
|
R12-5
WEIGHT LIMIT
24X36, 36X48
48X60
|
|
|
|
|
|
|
|
R14-1
TRUCK ROUTE
24X18
|
R14-2
Hazardous
Cargo/Materials
24X24, 30X30,
36X36
|
R14-3
Hazardous
Cargo/Materials
Prohibited
24X24, 30X30
36X36
|
R14-4
National Network
30X30, 36X36
New 2009 MUTCD
Standard Sizes
|
R14-5
National Network
Prohibited
30X30, 36X36
New 2009 MUTCD
Standard Sizes
|
R15-1
RAIL ROAD CROSSING
48X9
|
|
|
|
|
|
|
|
R15-2P
Railroad Crossing 3
TRACKS
27X18
|
R15-3P
EXEMPT
24X12
|
R15-4a
Light Rail Only Right
Lane
24X30
|
R15-5
Light Rail Do Not Pass
24X30
|
R15-5a
Do Not Pass Stopped
Trains
24X30
|
R15-6

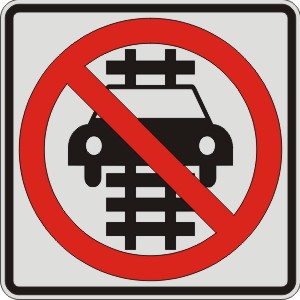

Do Not Drive On Tracks
Light Rail Symbol
24X24
|
|
|
|
|
|
|
|
R15-6a
Do Not Drive On Tracks
24X30
|
R15-7
Light Rail Divided
Highway Symbol
24X24
|
R15-7a
Light Rail Divided
Highway Symbol
24X24
|
R15-8
Look With Arrow
36X18
|
R16-1
Seatbelt Symbol
18X24
|
|
