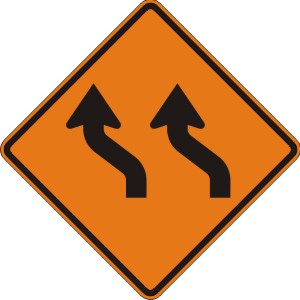

W1-4bL
TWO LANE REVERSE
CURVE
36X36, 48X48
|
W1-4bR
TWO LANE REVERSE
CURVE
36X36, 48X48
|
W1-4cL
THREE LANE
REVERSE CURVE
36X36, 48X48
|
W1-4cL
THREE LANE
REVERSE CURVE
36X36, 48X48
|
W4-7L
THRU TRAFFIC
MERGE LEFT
36X36, 48X48
|
W4-7R
THRU TRAFFIC MERGE
RIGHT
36X36, 48X48
|
|
|
|
|
|
|
|

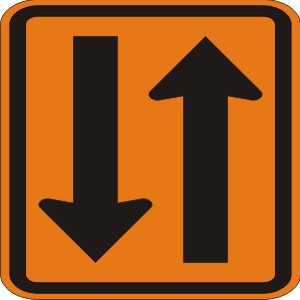

W6-4
TWO WAY TRAFFIC
PLAQUE
12X18
|
W8-1
BUMP
36X36, 48X48
|
W8-2
DIP
36X36, 48X48
|
W8-3
PAVEMENT END
36X36, 48X48
|
W8-4
SOFT SHOULDER
36X36, 48X48
|
W8-5
Slippery When Wet
36X36, 48X48
|
|
|
|
|
|
|
|
W8-6
TRUCK CROSSING
36X36, 48X48
|
W8-7
LOOSE GRAVEL
36X36, 48X48
|
W8-8
ROUGH ROAD
36X36, 48X48
|
W8-9
LOW SHOULDER
36X36, 48X48
|
W8-9a
SHOULDER DROP-OFF
36X36, 48X48
|
W8-9a
Shoulder Drop-Off Sym
36X36, 48X48
|
|
|
|
|
|
|
|
W8-11
UNEVEN LANES
36X36, 48X48
|
W8-12
NO CENTER STRIPE
36X36, 48X48
|
W9-1L
LEFT LANE ENDS
36X36, 48X48
|
W9-1R
RIGHT LANE ENDS
36X36, 48X48
|
W9-2L
LANE ENDS
MERGE LEFT
36X36, 48X48
|
W9-2R
LANE ENDS
MERGE RIGHT
36X36, 48X48
|
|
|
|
|
|
|
|
W9-3
CENTER LANE CLOSED
AHEAD
36X36, 48X48
|
W9-3A
CENTER LANE
CLOSED SYMBOL
36X36, 48X48
|
W9-3L
LEFT LANE CLOSED
AHEAD
36X36, 48X48
|
W9-3R
RIGHT LANE CLOSED
AHEAD
36X36, 48X48
|
W11-10
TRUCK CROSSING
36X36, 48X48
|
W12-1
DOUBLE ARROW
36X36, 48X48
|
|
|
|
|
|
|
|
W12-2
LOW CLEARANCE
36X36, 48X48
|
W13-1
ADVISORY SPEED
18X18, 24X24
30X30
|
W13-4
ON RAMP PLAQUE
36X36
|
W14-3
NO PASSING ZONE
48x48x36, 64x64x48
New 2009 MUTCD
Standard Sizes
|
W16-2P
500 FEET PLAQUE
24X18, 30X24
|
W20-1
ROAD CONSTRUCTION
1 MILE
36X36, 48X48
|
|
|
|
|
|
|
|
W20-1
ROAD CONSTRUCTION
Half MILE
36X36, 48X48
|
W20-1
ROAD
CONSTRUCTION -
1500 FT
36X36, 48X48
|
W20-1
ROAD
CONSTRUCTION -
1000 FT
36X36, 48X48
|
W20-1
ROAD
CONSTRUCTION 500
FT
36X36, 48X48
|
W20-1
ROAD
CONSTRUCTION -
AHEAD
36X36, 48X48
|
W20-2
DETOUR AHEAD
36X36, 48X48
|
|
|
|
|
|
|
|
W20-3
ROAD CLOSED AHEAD
36X36, 48X48
|
W20-3
STREET CLOSED
AHEAD
36X36, 48X48
|
W20-4
ONE LANE ROAD
AHEAD
36X36, 48x48
|
W20-4
ONE LANE RD 500 FT
36X36, 48X48
|
W20-4
ONE LANE RD 1000 FT
36X36, 48X48
|
W20-4
ONE LANE RD 1500 FT
36X36, 48X48
|
|
|
|
|
|
|
|
W20-5L
LEFT LANE CLOSED -
500 FT
36X36, 48X48
|
W20-5L
LEFT LANE CLOSED -
1000 FT
36X36, 48X48
|
W20-5L
LEFT LANE CLOSED -
1500 FT
36X36, 48X48
|
W20-5R
RIGHT LANE CLOSED
- AHEAD
36X36, 48X48
|
W20-5R
RIGHT LANE CLOSED -
500 FT
36X36, 48X48
|
W20-5R
RIGHT LANE CLOSED -
1000 FT
36X36, 48X48
|
|
|
|
|
|
|
|
W20-5R
RIGHT LANE CLOSED -
1500 FT
36X36, 48X48
|
W20-5a
RIGHT TWO LANES
CLOSED
36X36, 48X48
|
W20-7
FLAGGER
36X36, 48X48
|
W20-7a
Flagger Symbol
36X36, 48X48
|
W20-15/W3-4
BE PREPARED TO
STOP
36X36, 48X48
|
W21-1
WORKERS
36X36, 48X48
|
|
|
|
|
|
|
|
W21-1a
Worker Symbol
36X36, 48X48
|
W21-2
FRESH OIL
36X36, 48X48
|
W21-2
FRESH TAR
36X36, 48X48
|
W21-3
ROAD MACHINERY
36X36, 48X48
|
W21-4
ROAD WORK AHEAD
36X36, 48X48
|

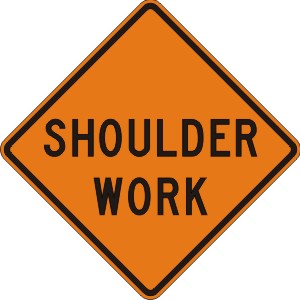

W21-5
SHOULDER WORK
36X36, 48X48
|
|
|
|
|
|
|
|
W21-5aL
LEFT SHOULDER
CLOSED
36X36, 48X48
|
W21-5aR
RIGHT SHOULDER
CLOSED
36X36, 48X48
|
W21-5bL
LEFT SHOULDER
CLOSED AHEAD
36X36, 48X48
|
W21-5bL
RIGHT SHOULDER
CLOSED AHEAD
36X36, 48X48
|
W21-6
SURVEY CREW
36X36, 48X48
|
W21-7
UTILITY WORK AHEAD
36X36, 48X48
|
|
|
|
|
|
|
|
W22-1
BLASTING ZONE AHEAD
36X36, 48X48
|

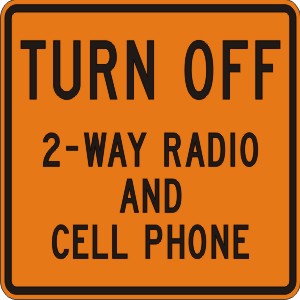

W22-2
TURN OFF 2-WAY
RADIO AND CELL
PHONE
42X36
New 2009 MUTCD
Standard Sizes
|
W22-3
END BLASTING ZONE
42X36
New 2009 MUTCD
Standard Sizes
|
W23-1
SLOW TRAFFIC AHEAD
48X24
|
W24-1L
DOUBLE REVERSE
CURVE 1 LANE
36X36, 48X48
|
W24-1R
DOUBLE REVERSE
CURVE 1 LANE
36X36, 48X48
|
|
|
|
|
|
|
|
W24-1aL
DOUBLE REVERSE
CURVE 2 LANES
36X36, 48X48
|
W24-1aR
DOUBLE REVERSE
CURVE 2 LANES
36X36, 48X48
|
W24-1bL
DOUBLE REVERSE
CURVE 3 LANES
36X36, 48X48
|
W24-1bR
DOUBLE REVERSE
CURVE 3 LANES
36X36, 48X48
|
G20-1
ROAD WORK NEXT 5
MILES
36X18, 48X24
|
G20-2
ROAD WORK ENDS
36X18, 48X24
|
|
|
|
|
|
|
|
G20-4
PILOT CAR
FOLLOW ME
36X18
|

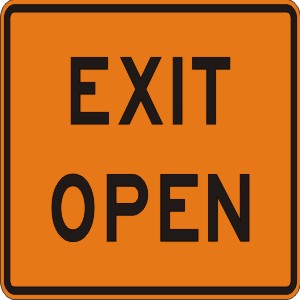

E5-2
EXIT OPEN
48X36
|

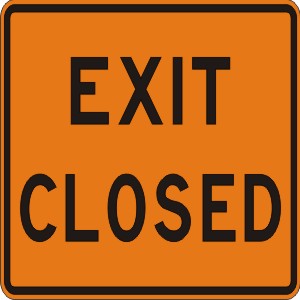

E5-2a
EXIT CLOSED
48X36
|

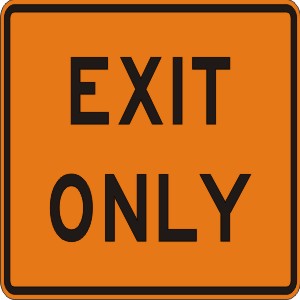

E5-3
EXIT ONLY
48X36
|
M4-8,
DETOUR Marker
24X12, 30X15
|
M4-8a
End Detour
24X18
|
|
|
|
|
|
|
|
M4-8b
END
24X12
|
M4-9L
DETOUR with Left
Arrow
30X24, 48X36
|
M4-9R
DETOUR with
Right Arrow
30X24
|
M4-9a
BICYCLE PEDESTRIAN
DETOUR
30X24
|
M4-9b
PEDESTRIAN DETOUR
30X24
|
M4-9C
BICYCLE DETOUR
30X24
|
|
|
|
|
|
|
|
M4-10
DETOUR inside Right
Arrow
48X18
|
|
|
|
|
|
